Campaign Configuration

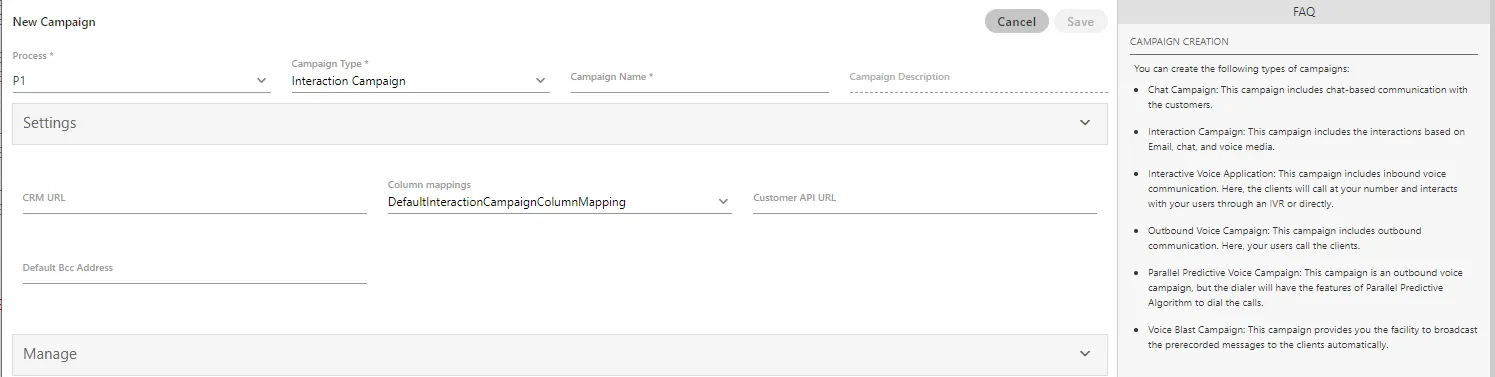

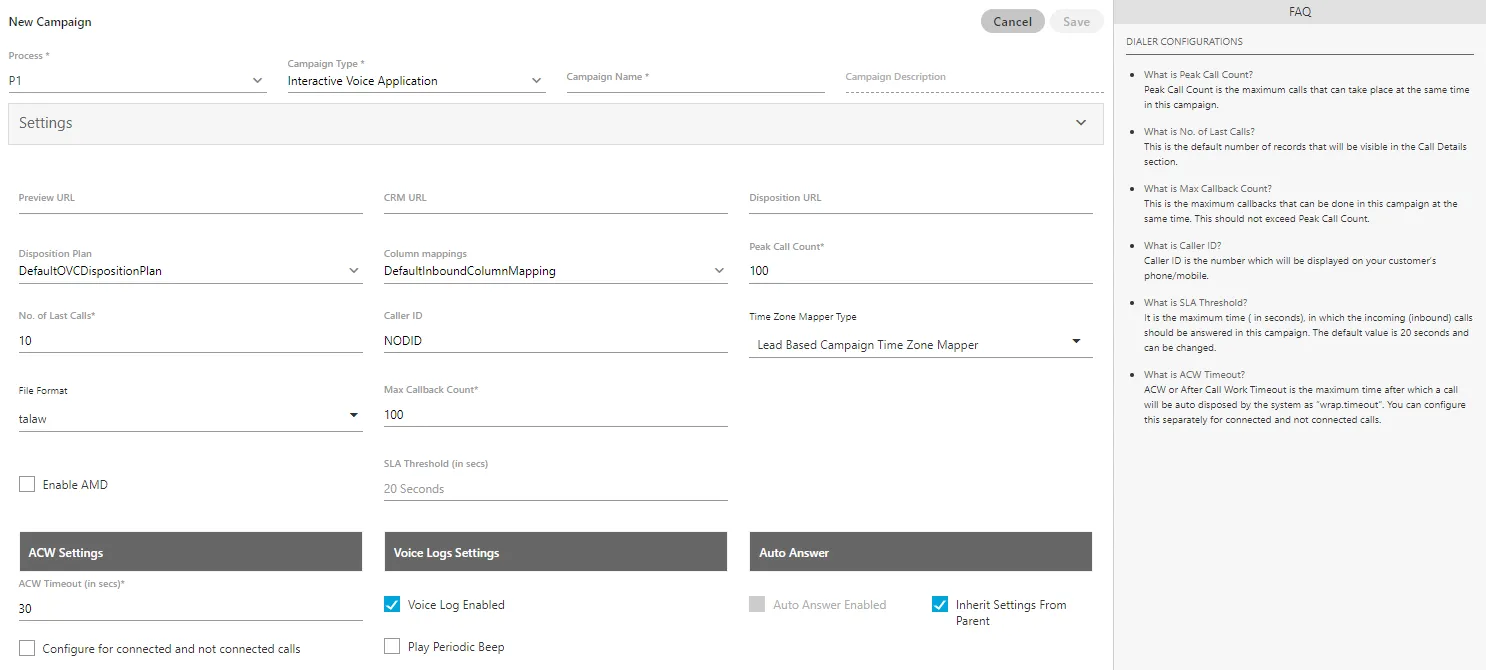

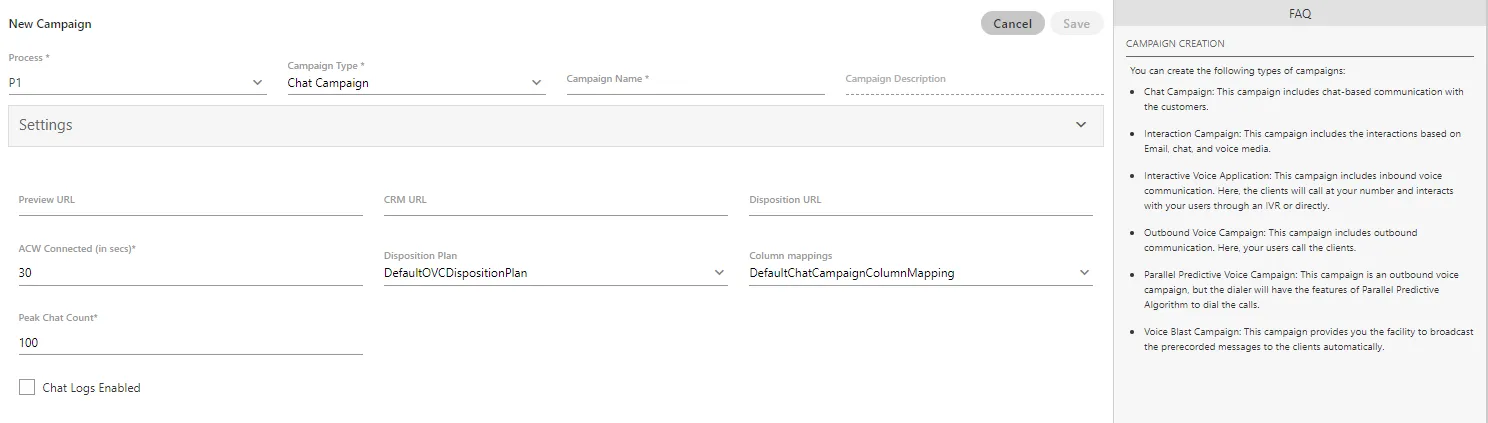

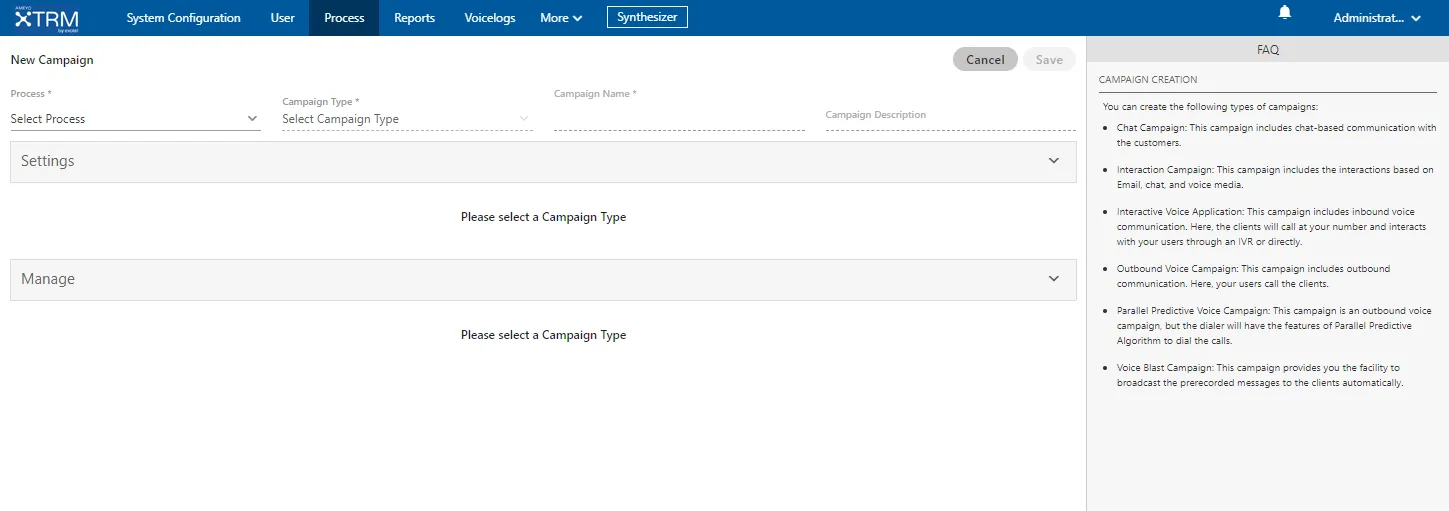

create a campaign perform the following steps to create a new campaign click "create new campaign" button in the sidebar to create a new campaign, click "create new campaign" button a new page is displayed on the screen while creating the campaigns, the answers for some of the commonly asked questions have been listed the administrator can refer to those definitions to know more about the campaign settings provide the input for the following fields process select the process in which the campaign is to be created campaign name enter the campaign name campaign type administrator can create any of the following types of campaigns chat campaign this campaign includes chat based interactions with the clients the chat includes the following chat applications ameyo web chat external chat applications twitter direct message line messenger viber messenger facebook messenger whatsapp whatsapp for business it is mandatory to create both chat and interaction campaign else the users will not be able to login to the chat campaign interaction campaign this campaign includes the interactions based on email and chat applications included in the selected chat campaign interactive voice application this campaign includes inbound voice communication here, the clients will call at your number and interacts with your users through an ivr or directly outbound voice campaign this campaign includes outbound communication here, your users call the clients video chat campaign this campaign includes video chat communication in this campaign, the users will be able to recieve and attend the video calls initiated by the customers parallel predictive voice campaign this campaign is an outbound voice campaign, but the dialer will have the features of parallel predictive algorithm to dial the calls voice blast campaign this campaign provides you the facility to broadcast the prerecorded messages to the clients automatically campaign description enter the description of the campaign general settings now, the steps to configure the general settings are different for each campaign type these steps are mentioned hereinbelow a chat campaign provide the inputs for the following fields to configure general settings for a chat campaign preview url provide the preview url if you are using ameyo crm, then following will be the preview url http //\<server ip> 8786/\<crm name>/preview\ php replace \<server ip> with the ip address of your computer where crm is installed crm url provide the crm url if you are using ameyo crm, then following will be the crm url http //\<server ip> 8786/\<crm name>/customer php replace \<server ip> with the ip address of your computer where crm is installed disposition url provide the disposition url if you are using ameyo crm, then following will be the disposition url http //\<server ip> 8786/\<crm name>/disposition php replace \<server ip> with the ip address of your computer where crm is installed replace \<crm name> with the name of the crm created acw connected(in sec) provide the duration after which the idle chat session will be closed and disposed of disposition plan select any of the following disposition plans defaultovcdispositionplan defaultivadispositionplan defaultvbcdispositionplan defaultccdispositionplan defaultivrcdispositionplan defaultcstacdispositionplan defaultaovcdispositionplan column mapping it shows the default and custom column mappings you can select any one peak chat count provide the maximum number of chat sessions that can be handled by an agent at a time even during the peak hours chat logs enabled check this box to enable the logging of chat logs however, you can uncheck it to disable the chat logs it is mandatory to create both chat and interaction campaign else the users will not be able to logon in the chat campaign b interaction campaign provide the inputs for the following fields we support only one interaction campaign it is advised to create multiple queues in ic to address the different functions of the business requirements (like sales, and support) however, the queue monitoring is not available in ic ticket will be created only in interaction campagin and not in other campaigns if you want to create tickets for any voice campaign, you need to create this campaign also it is mandatory to create and force users to use both interaction and chat campaigns together crm url provide the crm url if you are using ameyo crm, then following will be the crm url http //\<server ip> 8786/\<crm name>/customer php replace \<server ip> with the ip address of your computer where crm is installed column mapping it shows the default and custom column mappings you can select any one customer api url if you want to use a third party api within this campaign, provide the url of the third party api default bcc address provide the email address to which all emails be sent by default through bcc c interactive voice application provide the following inputs to create an interactive voice application campaign preview url provide the preview url if you are using ameyo crm, then following will be the preview url http //\<server ip> 8786/\<crm name>/preview\ php replace \<server ip> with the ip address of your computer where crm is installed crm url provide the crm url if you are using ameyo crm, then following will be the crm url http //\<server ip> 8786/\<crm name>/customer php replace \<server ip> with the ip address of your computer where crm is installed disposition url provide the disposition url if you are using ameyo crm, then following will be the disposition url http //\<server ip> 8786/\<crm name>/disposition php replace \<server ip> with the ip address of your computer where crm is installed disposition plan select any of the following disposition plans defaultovcdispositionplan defaultivadispositionplan defaultvbcdispositionplan defaultccdispositionplan defaultivrcdispositionplan defaultcstacdispositionplan defaultaovcdispositionplan column mapping it shows the default and custom column mappings you can select any one peak call count peak call count is the maximum calls that can take place at the same time in this campaign no of last calls provide the maximum number of last calls call id enter the did number that will be displayed as the caller id "nodid" is the default value time zone mapper type select any of the following time zone mapper types, which allows you to map the time zones lead based campaign time zone mapper in this case, the time zone of the customer is specified from the time zone set in the lead settings default campaign time zone mapper in this case, time zone is determined from customer data we get the time zone info from the column specified against time zone column mapping in the campaign phone pattern based campaign time zone mapper it is related to number management in ameyo with phone pattern based campaign time zone mapper, country code and area code can be mapped to a time zone and all numbers with that country code and area code will be dialed according to that time zone restriction/criteria state based campaign time zone mapper it is related to number management in ameyo with state based campaign time zone mapper, users are grouped as per their states mentioned in their details and all numbers with the same state will be dialed according to its time zone restriction/criteria file format select any of the following file formats in which the voice recordings will be saved talaw tulaw tgsm tg729 alaw maximum callback count provide the maximum number of callbacks, which can be made by a user enable amd amd stands for answering machine detection check this box to enable the detection of answering machines when the auto dialer makes the outbound calls automatically sla threshold here, you can define the sla threshold, in which the incoming (inbound) calls should be answered in this campaign the default value is 20 seconds, but it can be changed here acw settings here, you can apply the acw timeout settings a textbox named "acw timeout (in sec)", which is a mandatory field while creating or modifying the campaign the administrator have to provide the value between 1 and 3600 seconds, which is the duration in which the call (after disconnection) should be disposed of or wrapped here, you can configure this option for both "connected calls" (calls which are connected with both customer and agent) and "not connected calls" (calls which cannot be connected with either agent, or customer, or both) perform the following steps here if you want to configure same acw timeout value for both connected and not connected calls, then just enter the timeout value if you want to configure different acw timeout value for connected and not connected calls, then check the box titled "configure for connected and not connected calls" once checked, it shows the different textboxes at the bottom if you are enabling the option to give separate timeout values for connected and not connected calls, then their values should be different else the ameyo system will not accept them if both values are kept same, then the selection of "configure for connected and not connected calls" will be undone the agent has to dispose of the connected or not connected calls, after their disconnection within the specified acw timeouts else these calls will be automatically disposed of voice logs settings here, you can manage the settings related to the voicelogs voice logs enabled check this box to enable the logging of voice logs however, you can uncheck it to disable the voice logs play periodic beep check this box to play a beep periodically during the call to notify the caller that the call is being recorded after checking it, you can specify the interval in seconds after which the beep will be played auto answer enabled check this box to enable the auto answer of the call for the campaign this check box will be remained disabled, if the auto answer setting is not enabled in the system settings inherit settings from parent check this box to inherit the settings from the parent, that is, from the system settings it means that, if the settings in the system is enabled to the auto answer then, auto answer setting will be same for the campaign you can disable the auto answer settings from here, as well d outbound voice campaign provide the following inputs to create an outbound voice campaign preview url provide the preview url if you are using ameyo crm, then following will be the preview url http //\<server ip> 8786/\<crm name>/preview\ php replace \<server ip> with the ip address of your computer where crm is installed crm url provide the crm url if you are using ameyo crm, then following will be the crm url http //\<server ip> 8786/\<crm name>/customer php replace \<server ip> with the ip address of your computer where crm is installed disposition url provide the disposition url if you are using ameyo crm, then following will be the disposition url http //\<server ip> 8786/\<crm name>/disposition php replace \<server ip> with the ip address of your computer where crm is installed disposition plan select any of the following disposition plans defaultovcdispositionplan defaultivadispositionplan defaultvbcdispositionplan defaultccdispositionplan defaultivrcdispositionplan defaultcstacdispositionplan defaultaovcdispositionplan column mapping it shows the default and custom column mappings you can select any one peak call count peak call count is the maximum calls that can take place at the same time in this campaign no of last calls provide the maximum number of last calls call id enter the did number that will be displayed as the caller id "nodid" is the default value time zone mapper type select any of the following time zone mapper types, which allows you to map the time zones lead based campaign time zone mapper in this case, time zone of the customer is specified from the time zone set in the lead settings default campaign time zone mapper in this case time zone is determined from customer data we get the time zone info from the column specified against time zone column mapping in the campaign phone pattern based campaign time zone mapper it is related to number management in ameyo with phone pattern based campaign time zone mapper, country code and area code can be mapped to a time zone and all numbers with that country code and area code will be dialed according to that time zone restriction/criteria state based campaign time zone mapper it is related to number management in ameyo with state based campaign time zone mapper, users are grouped as per their states mentioned in their details and all numbers with the same state will be dialed according to its time zone restriction/criteria file format select any of the following file formats in which the voice recordings will be saved talaw tulaw tgsm tg729 alaw maximum callback count provide the maximum number of callbacks, which can be made by a user enable amd amd stands for answering machine detection check this box to enable the detection of answering machines when the auto dialer makes the outbound calls automatically acw settings here, you can apply the acw timeout settings a textbox named "acw timeout (in sec)", which is a mandatory field while creating or modifying the campaign the administrator have to provide the value between 1 and 3600 seconds, which is the duration in which the call (after disconnection) should be disposed of or wrapped here, you can configure this option for both "connected calls" (calls which are connected with both customer and agent) and "not connected calls" (calls which cannot be connected with either agent, or customer, or both) perform the following steps here if you want to configure same acw timeout value for both connected and not connected calls, then just enter the timeout value if you want to configure different acw timeout value for connected and not connected calls, then check the box titled "configure for connected and not connected calls" once checked, it shows the different textboxes at the bottom if you are enabling the option to give separate timeout values for connected and not connected calls, then their values should be different else the ameyo system will not accept them if both values are kept same, then the selection of "configure for connected and not connected calls" will be undone the agent has to dispose of the connected or not connected calls, after their disconnection within the specified acw timeouts else these calls will be automatically disposed of voice logs settings here, you can manage the settings related to the voicelogs voice logs enabled check this box to enable the logging of voice logs however, you can uncheck it to disable the voice logs play periodic beep check this box to play a beep periodically during the call to notify the caller that the call is being recorded after checking it, you can specify the interval in seconds after which the beep will be played auto answer enabled check this box to enable the auto answer of the call for the campaign this check box will be remained disabled, if the auto answer setting is not enabled in the system settings inherit settings from parent check this box to inherit the settings from the parent, that is, from the system settings it means that, if the settings in the system is enabled to the auto answer then, auto answer setting will be same for the campaign you can disable the auto answer settings from here, as well parallel predictive voice campaign provide the following inputs to create a voice campaign that will be equipped with the features of predictive dialing algorithm preview url provide the preview url if you are using ameyo crm, then following will be the preview url http //\<server ip> 8786/\<crm name>/preview\ phpreplace \<server ip> with the ip address of your computer where crm is installed crm url provide the crm url if you are using ameyo crm, then following will be the crm url http //\<server ip> 8786/\<crm name>/customer phpreplace \<server ip> with the ip address of your computer where crm is installed disposition url provide the disposition url if you are using ameyo crm, then following will be the disposition url http //\<server ip> 8786/\<crm name>/disposition phpreplace \<server ip> with the ip address of your computer where crm is installed disposition plan select any of the following disposition plans defaultovcdispositionplan defaultivadispositionplan defaultvbcdispositionplan defaultccdispositionplan defaultivrcdispositionplan defaultcstacdispositionplan defaultaovcdispositionplan column mapping it shows the default and custom column mappings you can select any one peak call count peak call count is the maximum calls that can take place at the same time in this campaign no of last calls provide the maximum number of last calls call id enter the did number that will be displayed as the caller id "nodid" is the default value time zone mapper type select any of the following time zone mapper types, which allows you to map the time zones lead based campaign time zone mapper in this case, time zone of the customer is specified from the time zone set in the lead settings default campaign time zone mapper in this case time zone is determined from customer data we get the time zone info from the column specified against time zone column mapping in the campaign phone pattern based campaign time zone mapper it is related to number management in ameyo with phone pattern based campaign time zone mapper, country code and area code can be mapped to a time zone and all numbers with that country code and area code will be dialed according to that time zone restriction/criteria state based campaign time zone mapper it is related to number management in ameyo with state based campaign time zone mapper, users are grouped as per their states mentioned in their details and all numbers with the same state will be dialed according to its time zone restriction/criteria file format select any of the following file formats in which the voice recordings will be saved talaw tulaw tgsm tg729 alaw maximum callback count provide the maximum number of callbacks, which can be made by a user enable amd amd stands for answering machine detection check this box to enable the detection of answering machines when the auto dialer makes the outbound calls automatically acw settings here, you can apply the acw timeout settings a textbox named "acw timeout (in sec)", which is a mandatory field while creating or modifying the campaign the administrator have to provide the value between 1 and 3600 seconds, which is the duration in which the call (after disconnection) should be disposed of or wrapped here, you can configure this option for both "connected calls" (calls which are connected with both customer and agent) and "not connected calls" (calls which cannot be connected with either agent, or customer, or both) perform the following steps here if you want to configure same acw timeout value for both connected and not connected calls, then just enter the timeout value if you want to configure different acw timeout value for connected and not connected calls, then check the box titled "configure for connected and not connected calls" once checked, it shows the different textboxes at the bottom if you are enabling the option to give separate timeout values for connected and not connected calls, then their values should be different else the ameyo system will not accept them if both values are kept same, then the selection of "configure for connected and not connected calls" will be undone the agent has to dispose of the connected or not connected calls, after their disconnection within the specified acw timeouts else these calls will be automatically disposed of voice logs settings here, you can manage the settings related to the voicelogs voice logs enabled check this box to enable the logging of voice logs however, you can uncheck it to disable the voice logs play periodic beep check this box to play a beep periodically during the call to notify the caller that the call is being recorded after checking it, you can specify the interval in seconds after which the beep will be played voice blast campaign provide the following inputs to create the campaign that broadcasts the pre recorded voice messages automatically to the provided list of numbers column mapping it shows the default and custom column mappings you can select any one peak call count peak call count is the maximum calls that can take place at the same time in this campaign call id enter the did number that will be displayed as the caller id "nodid" is the default value time zone mapper type select any of the following time zone mapper types, which allows you to map the time zones lead based campaign time zone mapper in this case, time zone of the customer is specified from the time zone set in the lead settings default campaign time zone mapper in this case time zone is determined from customer data we get the time zone info from the column specified against time zone column mapping in the campaign phone pattern based campaign time zone mapper it is related to number management in ameyo with phone pattern based campaign time zone mapper, country code and area code can be mapped to a time zone and all numbers with that country code and area code will be dialed according to that time zone restriction/criteria state based campaign time zone mapper it is related to number management in ameyo with state based campaign time zone mapper, users are grouped as per their states mentioned in their details and all numbers with the same state will be dialed according to its time zone restriction/criteria file format select any of the following file formats in which the voice recordings will be saved wav talaw tulaw tgsm tg729 alaw manage \[manage users] in this section, you can assign the selected users to the campaign only the users having following system (user) roles are displayed here you can add other users having other roles while modifying the campaign supervisor professional agent executive analyst group manager only supervisors can be added in voice blast campaign perform the following steps to assign the users to this campaign a select the users from the "available users" section you can click the checkbox given on top to select all users you can also search for the user names in the provided search box b click on forward arrow icon to add the selected users browse to top, and click "save" button to create the campaign alternatively, you can click "cancel" to not create the campaign once the campaign is created, it is visible under its process in the sidebar you can click the process to view the campaigns created in it similarly, the following campaigns are created in "testing" process after creating any or multiple campaigns of any type, multiple tabs are created in "system" → "system configuration" tab these tabs can be configured to have unique settings on all campaigns
