Call Context Tab

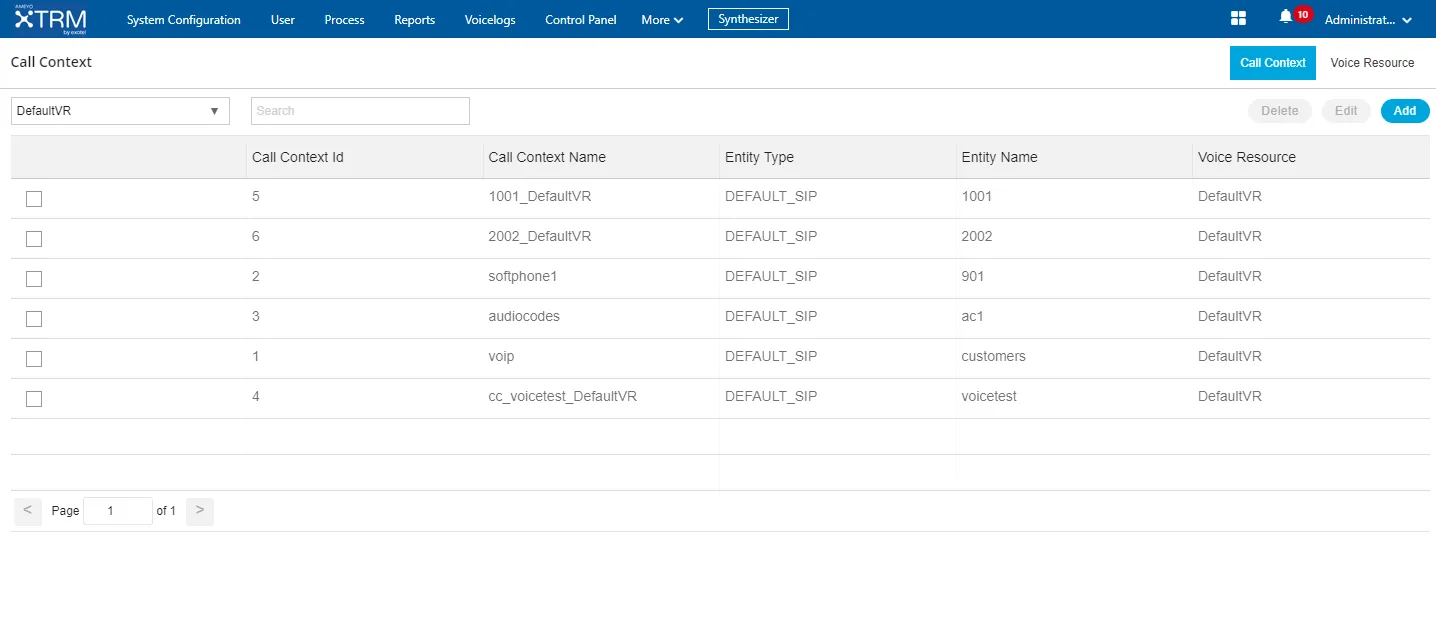

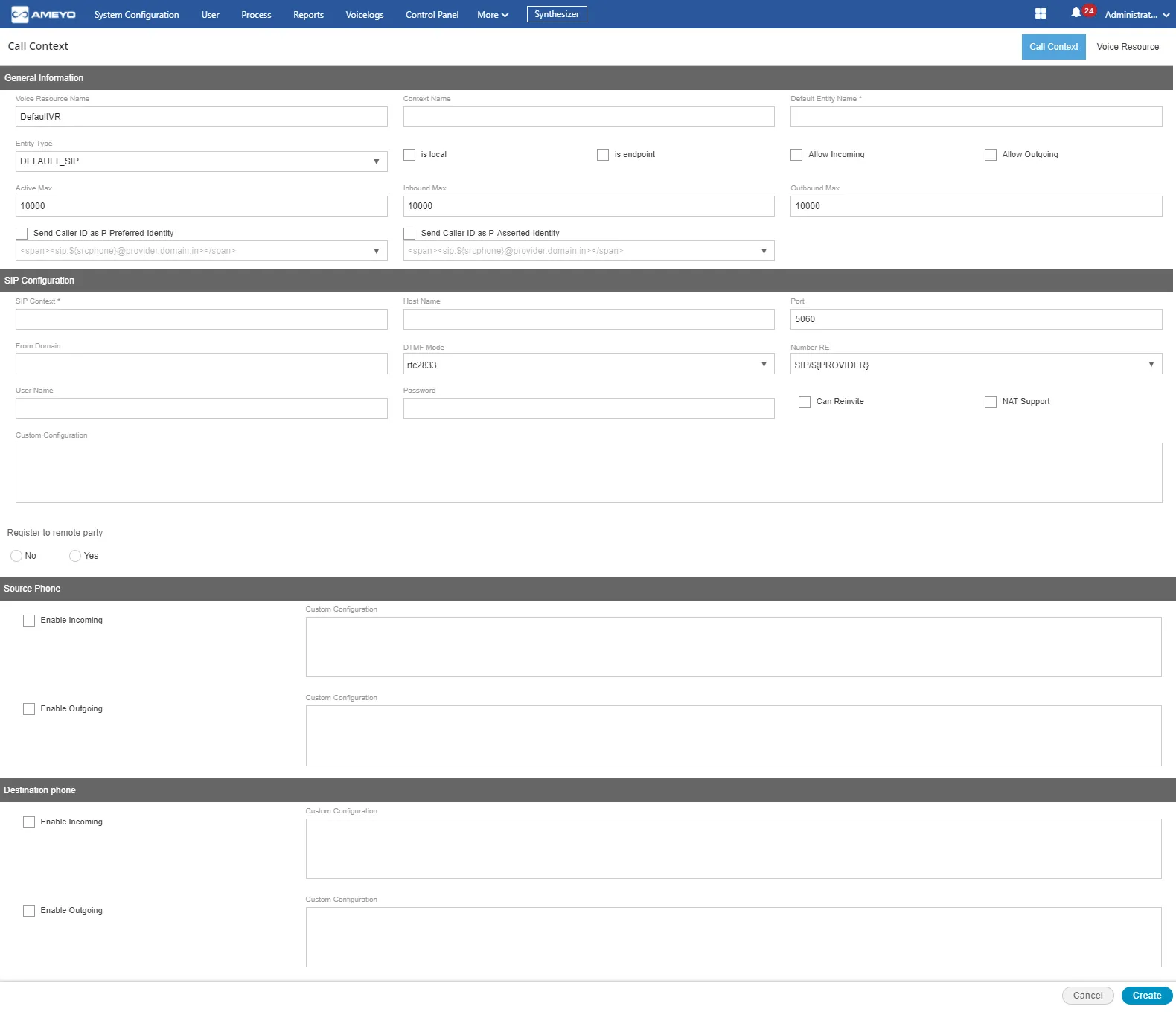

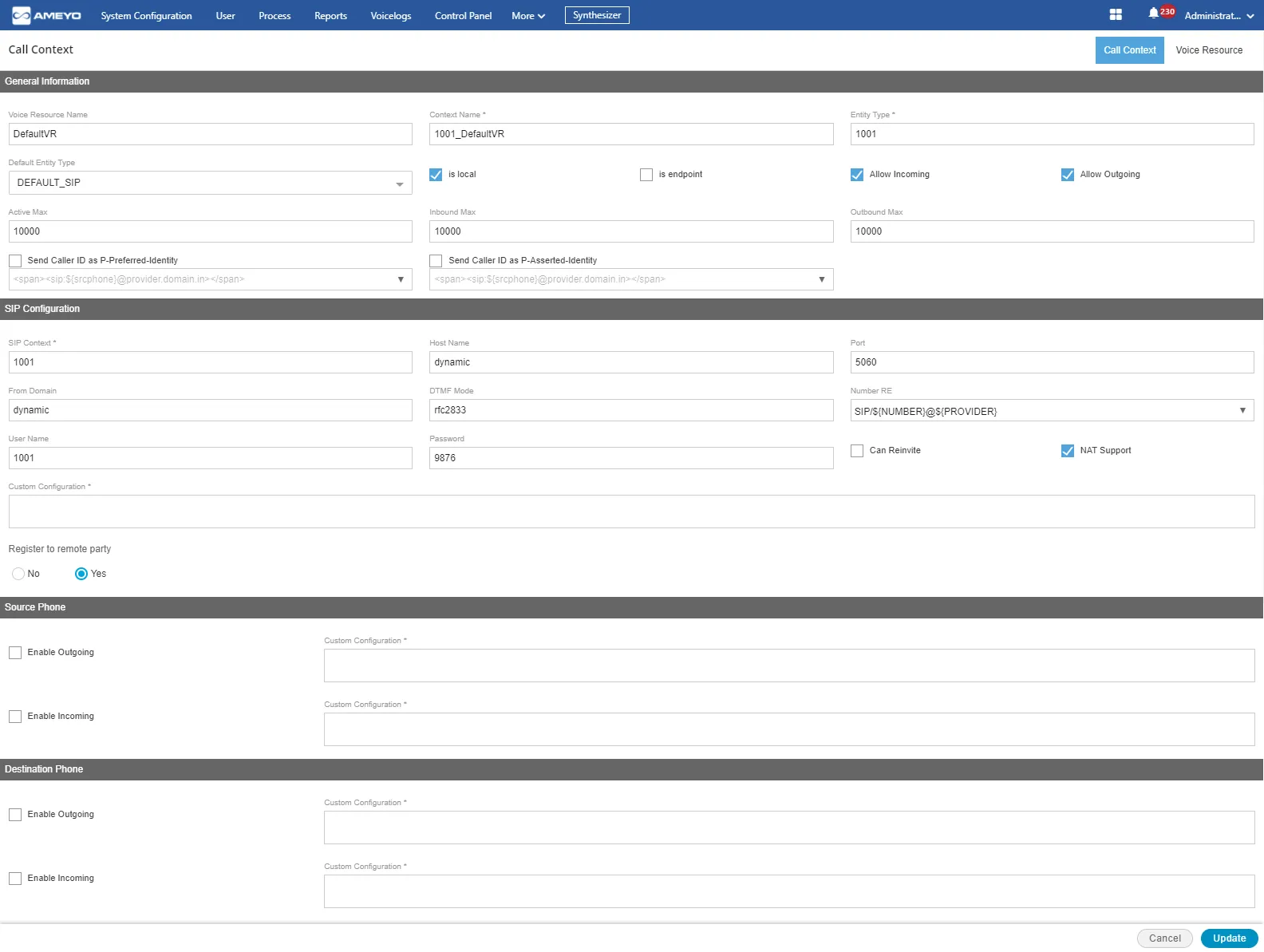

call context is basically the sip channel that will be used by the agent to initiate the calls add a call context perform the following steps to add a call context click "add" to add a call context the following page is displayed in "voice resource name" drop down menu, select a voice resource if no custom voice resource is added, keep "defaultvr" selected in this menu provide the context name of the sip entity provide a name for the entity select any of the following entity type we are selecting "default sip" in this test case default sip default zap trunk is local if this is checked then entity will be visible to the agent is endpoint no other agent can select that entity allow incoming allow incoming calls using the selected call context if not set, then the incoming calls on this call context would be automatically rejected allow outgoing allow outgoing calls using the selected call context if not set, then the request for outgoing calls on this call context would be rejected active max maximum allowed active channels it allows system not to maintain active calls beyond the configured range with this call context inbound max maximum allowed incoming channels it allows system not to receive incoming calls beyond the configured range with this call context outbound max maximum allowed outgoing channels it allows system not to dial outgoing calls beyond the configured range with this call context send caller id as p preferred identity enable the checkbox, if you want to send the callerid as the p preferred identity after enabling it, select the identity from the available drop down list send caller id as p asserted identity enable the checkbox, if you want to send the callerid as the p asserted identity after enabling it, select the identity from the available drop down list in sip configuration section, provide the following details about the sip sip context the context of a sip entity hostname the hostname or ip address of client host port the communication port of sip entity from domain set the domain name if the client host is behind the nat or domain dtmf mode dtmf mode supported by the sip entity number re select any of the following number patterns to connect with the receiver sip/provider sip/${provider} sip/number\@provider sip/${number}@${provider} username the username of the client if client sip entity requires authentication password authentication password to connect with sip client can reinvite sip entity to allow sip reinvites select the checkbox to enable reinvite nat supported if nat (network address translation) is supported on the sip entity select the checkbox to enable reinvte custom configuration this field is used to configure specific parameters allowed only for a particular sip entity register to remote party select "yes" radiobutton, if you want to register this sip to the remote party also source phone you can enable outgoing and incoming for the source phone you can also provide the custom configuration destination phone you can enable outgoing and incoming for the destination phone you can also provide the custom configuration click "create" button to create a new call context edit the call context perform the following steps to edit the call context select the call context which you want to edit click "edit" button present at the top right corner of the page the following page arises on which you can edit the entries of the call context delete the call context if you want to delete the call context then, click "delete" button present at the right top of the page, to delete the call context however, do not delete a call context that is being used in any campaign for calls the deleted call context cannot be restored
