Routing in a Voice Campaign

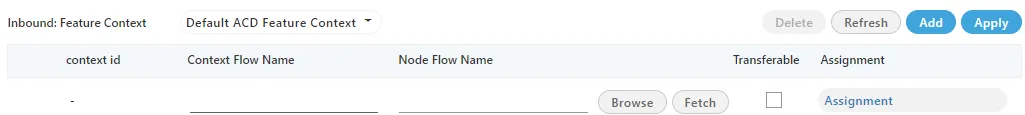

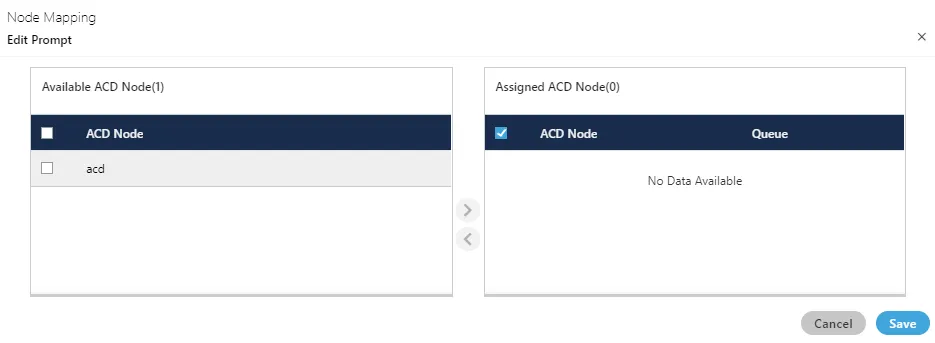

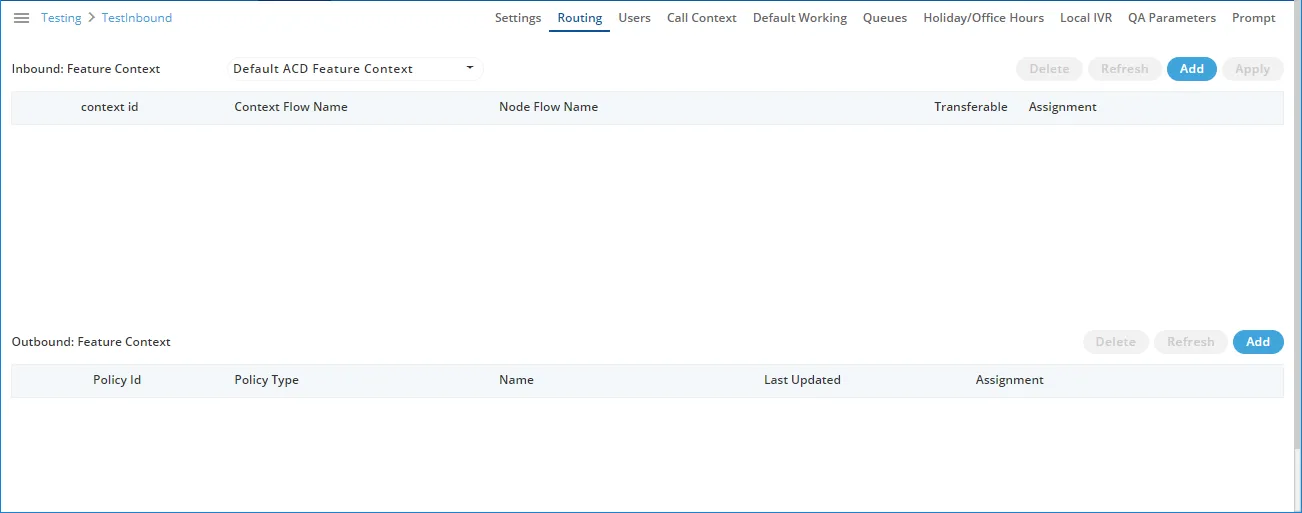

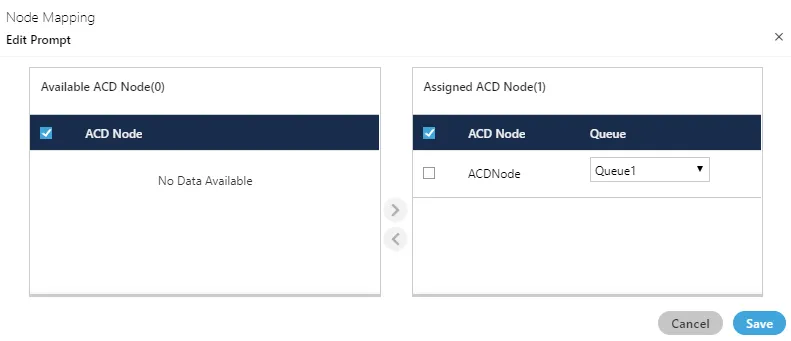

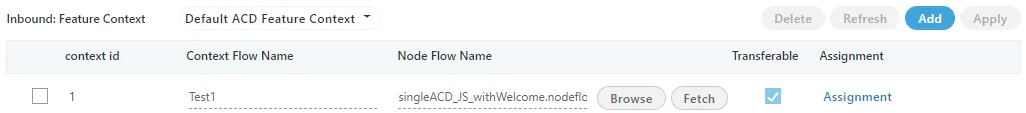

routing in a voice campaign here, you can create and manage the routing for both inbound and outbound calls in interactive voice application campaign, outbound campaign, and parallel predictive campaign routing for inbound add a nodeflow for routing perform the following steps to create a nodeflow click "add" button to create a nodeflow it shows a new row in the white area just below the column header provide a name for the context flow in "node flow name" column, you have to upload either a nodeflow or anfx flow service engineer will provide you the required nodeflow files click "browse" to open a nodeflow file select the location where the file stored select the required file and click "open" check "transferable" if you want to transfer the call from this nodeflow to another nodeflow click "apply" to add the nodeflow assign nodeflow to a queue perform the following steps to assign a nodeflow to a queue in the campaign check the box to select a queue click "assignment" to assign this nodeflow to a queue it shows the following pop up select "acd" node in "available acd node" section, and click icon select the nodeflow in "assigned acd node" section in "queue" drop down menu, select the queue to which you want to assign this ndoeflow click "save" to assign the nodeflow to the selected queue it takes you back to "routing" tab you can perform the same steps to create the nodeflow and to assign it to a queue you can fetch a nodeflow and download it as a file on the disk, assign or unassign it to a queue, and delete the nodeflow delete routing policy select the routing policy for which you want to delete permanently click "delete" button a confirmation pop up comes up click "yes" if you want to delete the routing policy, else click "no" routing for outbound in "outbound feature context" section, perform the following steps click "add" to add a routing policy for the outbound feature context it creates a new row in the blank area select any of the following policy types basic single call context type it is the policy type in which outbound calls will be dialed out from the single call context phone based call context type it is the policy type in which administrator can define the pattern on basis of which numbers will be dialed out from multiple call context it will only reflect after procuring appropriate licenses basic multiple call context type (licensable) it is the policy type in which outbound calls will be dialed out from multiple call context it will only reflect after procuring appropriate licenses multiple type round robin call context type it is the policy in which if a call tried by a call context fails to get connected, then it will be tried by the different call contexts that are selected for calling as per round robin algorithm as per round robin algorithm, each call context is used to call for a fixed amount of time and if the call does not get connected in that duration, another call context is used the left over call context is reused when all other call contexts in the loop are used and the call is still not connected make sure to not provide a name for the routing for any "outbound feature context" the name will be assigned automatically after selecting the call contexts the outbound routing with manual names will not work click "assign" link under "assignment" header to select a call context that you have assigned in this campaign in "call context" tab following pop up is displayed for "basic single call context type" on the page for "phone based call type", "basic multiple call context type", and "multiple type round robin call context type", the following pop up appears to select the multiple call contexts perform the following steps to assign call contexts to this new policy select the call contexts in "available" section click icon to proceed to assign the selected call contexts click "save" to assign the call contexts to this campaign rather, you can click "cancel" to not assign the call contexts to unassign a call context, click the link under "assign" header for a new or existing outbound routing policy, select a call context in "assigned call contexts" section, click icon, and click "save" to unassign the selected call context from the campaign click "save" to proceed to add the selected context to the routing policy click "apply" to create the routing plan for outbound you can create multiple routing policies for the outbound feature in the interactive voice application (inbound) campaign you can only change the selected call contexts while modifying an outbound routing policy in addition to that, you can also delete a routing policy delete routing policy select the routing policy for which you want to delete permanently click "delete" button a confirmation pop up comes up click "yes" if you want to delete the routing policy, else click "no" saving routing test result when an administrator creates a routing test case, they may want to check that test case frequently so that any issues in the routing can be figured out easily allowing the administrator to save these test results saves an enormous amount of time for them on the routing test screen, the administrator can save the test cases the saved test cases are listed on the same screen administrator can also perform the following actions delete a test case or select multiple test cases and delete them search for a test case select the test case(s) they want to run edit a test case
